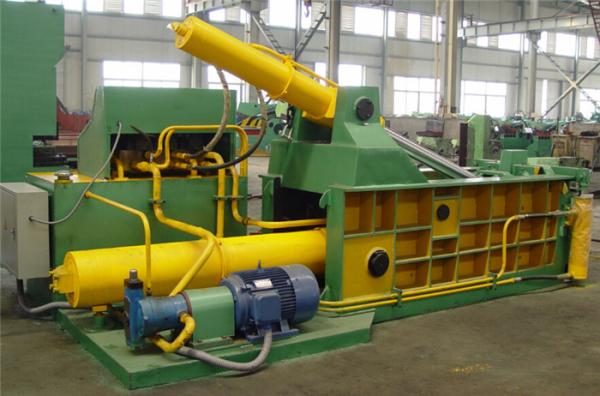

0.8 - 1.8 tons / hr Electrical Motor Hydraulic Baling Press Y81Q - 80 Baler
Specifications
Hydraulic metal baler
Hydraulic drive ,manual valve operation or PLC control
Bale-discharging :turn-out ,push-out, forward-out
Waste metal baler machine
Metal press baler machine
Company Profile
We, Jiangsu Dalongkai Technology Co., Ltd, provide both standard and customized design in large range of different machines. They are widely applied in industries of metal smelting, fiber, textile, paper-making, waste recycle, automobile, metal processing and so on.Our trade company not only promotes our machinery, we also export different kinds of products by our professional sales team. We have made significant achievements by our trade company. We will keep researching and developing the products to meet the client’s need. And we will make our efforts to achieve our commission: better recycle, better environment, better future, better life.
Introduction
All machine modes adopt hydraulic driving. It can be operated with manual operation and PLC automatic control. The foot screw is not needed for the installation, and the diesel engine can be equipped as power in the place with no power. The bale discharging is composed of types such as tilting and bale pushing. There are 8 grades for extrusion force from 63 tons to 400 tons, and the production efficiency ranges from 0.5 ton/hour to 20 ton/hour. The feed box size and bale shape and size can be customized and designed according to the raw material specification of customers.
Advantages
1. Our baler machine under 250 ton is integral structure. Hydraulic station connects with the host machine together. So it doesn’t need to install. One machine puts in one 20" container. And it saves ship cost.
2. We use good quality seals, so no oil leak.
3. Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
4. Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
5.Our baler machine is more effcient and stable.
Technical parameters
| Power system | Rated Speed | Rated Power | Power Spec. | Lid cyl. Force | Front Door cyl. Force | Main Pressure cyl. Force |
| Motor | 970 rpm | 15 kw | 3ph,50/60 HZ | 50 Ton | 2*24Ton | 80Ton |
| | | | | | | |
| Max.Operating Pressure | Hydraulic System Pressure | Idle Cycle Time | Hydraulic System | Rated Displacement | Operating System |
| 31. 5 Mpa | 25mpa | APPROX. 100 Sec. | Pump | 63 mr/r | PLC Operation | Manual valve operation |
| | | | | | | |
| Standard Operation | Optional Configuration |
| A3 Steel Liners , Surface heat Treatment | Cutting Blades and teeth(2 sides) | Cooler / Heater | Diesel / Diesel Generator for power |
